Universal Wireless Stand-alone Sensor GL-TV Uni

Universal autonomous sensor GL-TV Uni with sensors of temperature, magnetic field, illumination and the possibility of autonomous connection ds18b20

The GL-TV Uni sensor is an integrated IoS Bluetooth LE 5.2 sensor platform powered by two independent Li-SOCI2 batteries, providing long-term and reliable data transmission from sensor sensors in the harshest conditions.

GL-TV Uni is a multi-sensor wireless platform with a magnetic field sensor (hall sensor), temperature sensor, light sensorr. Multiple spanning capabilities support a wide range of use cases, and its IP67 enclosure provides reliable protection even in the harshest conditions. The display and output of information can be carried out using various monitoring and telemetry systems, smartphones, as well as using the universal BLE indicator GL-TV Tab.



 Design and functionality of the sensor:

The presence of an external antenna for stable operation inside refrigerators, refrigerators, thermowells (from other closed metal objects);

• Magnetic field sensor - magnetic reed switch;

• Light sensor;

• External constant voltage monitoring;

• IP67 housing;

• High capacity of two batteries, duplication of power supply, it is possible to replace batteries at the end of their service life;

Temperature control: built-in temperature sensor, with the possibility of offline connection of an external DS18b20 sensor;

•  LED operation indication;

•  Linearity of measurements, high accuracy

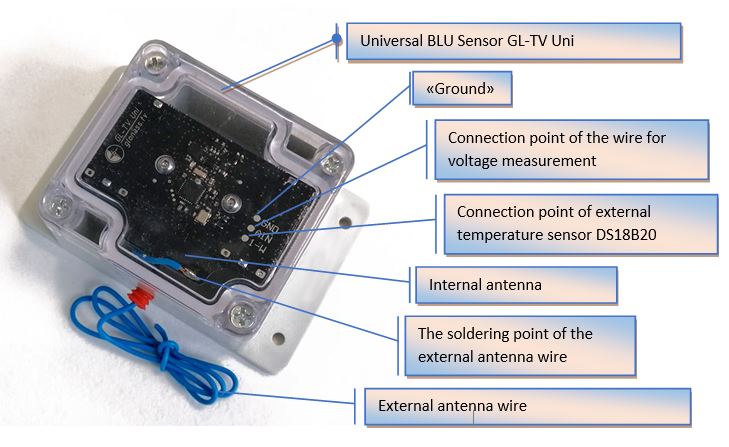

 Connection points for additional functionality of the GL-TV Uni sensor

Advantages of the GL-TV Uni Wireless Universal Sensor:

  • Absence of wires and cables due to the use of the Bluetooth LE radio channel
  • Wide range of applications (temperature sensor, reed switch, light sensor)
  • Easy setup via mobile app and quick installation
  • Stable communication due to the use of two types of antennas
  • Autonomous power supply for 6 years or more
  • The best replacement for wired temperature sensors

Extensible functionality of GL-TV Uni :

1. Support for external temperature sensors on the DS18B20 chip.

2. External measurement of the DC voltage level.

3. External antenna.

Modifications of GL-TV Uni:

  • GL-TV Uni - has full functionality;
  • GL-TV Uni 01 - there is no tilt angle sensor;
  • GL-TV Uni 02 - with an external DS18B20 temperature sensor connected;
  • GL-TV Uni 03 - with an external DS18B20 temperature sensor connected, there is no tilt angle sensor.

Universal BLE sensor with low profile housing: Universal autonomous sensor GL-TV Uni in a low-profile housing

  • GL-TV Uni L- it has full functionality;
  • GL-TV Uni L 01 - there is no tilt angle sensor;
  • GL-TV Uni L 02 - with an external DS18B20 temperature sensor connected;
  • GL-TV Uni L 03 - with an external DS18B20 temperature sensor connected, there is no tilt angle sensor.

 Technical specifications:

Name of the characteristic or parameter

Meaning

Temperature sensor:

Temperature measurement range

-55...+85°C

Temperature measurement error

±1°С

Discreteness of temperature measurement

0.01°C

Light sensor:

Illumination measurement range

0...65000 lux

Illumination measurement error

±20%

Measurement discreteness

1 lux

Magnetic field sensor:

Magnetic field measurement range

±20mT

Magnetic field measurement error

10%

Discreteness of magnetic field measurement

0.01mT

Data transmission when the magnetic sensor is triggered

Extraordinary

Tilt angle sensor (available in the main modification - GL-TV Uni):

Tilt angle measurement range (X, Y, Z axis)

±90°

Angle measurement error

±1°

Дискретность измерения угла наклона

Extensible functionality:

ВExternal temperature sensor DS18B20

The error does not exceed 0.5 °C in the range of -10... +85 °C. The measurement accuracy is 11 bits.

Measurement of external DC voltage

0...36 Volts

General parameters:

Housing protection class against dust and moisture

IP67

Operation indication

LED on the board

Overall dimensions of the standard housing, mm

maximum: 90 (65 without flange) x 58 x 35

  Overall dimensions of the low-profile housing, mm      maximum: 90 (65 without flange) x 58 x 24

Weight

not more than 100 grams

Data transmission:

Interface

Bluetooth LE 5.2

Transmission distance in the absence of interference and obstacles

100 m

Antenna Type

1) Onboard antenna on a printed circuit board,

2) additional external wire antenna

Transmitter power

4dBm

Data transmission frequency

1 time in 5-250 s.

Service life (-40...+60°C, 1 gear in 10 s.)

More than 4 years

Service life (-24...+35°C, 1 gear in 10 s.)

More than 8 years

Power supply:

The battery:

2 Li-SOCl2 batteries

Capacity of each battery

1200mAh

Operating temperature

-55…+85°C

Operating conditions:

- ambient temperatures

-55...+85°C

- limit ambient temperature

-60...+90°C

- atmospheric pressure

84 ... 106.7 kPa



Warranty obligations:

1. The warranty period of operation is 2 years from the date of shipment from the manufacturer.

2. The warranty period does not apply to batteries.

3. The warranty does not apply to the sensor with mechanical defects or with other defects caused by the fault of the consumer, due to violation of the conditions of operation, storage, transportation.
